Model

TD-3004H1-B1-B

TD-3008H1-B1-B

System

OS

Embedded Linux

Video

Network Input

4 CH IPC input

8CH IPC input

Network Input Resolution

6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF

Output

HDMI × 1 : 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768

HDMI and VGA output the same video source

Compression

H.265S / H.265+ /H.265 /H.264

Multi-screen  Display

1 / 4

1 / 4 / 6 / 8 / 9

Audio

Network Input

4 CH IPC audio input

8 CH IPC audio input

2-way Audio

No

Local Output

No (HDMI supports the audio output)

Compression

G.711(U/A)

Record

Resolution

6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF

Frame Rate

30fps/25fps(NTSC/PAL)

Playback

Simultaneous Playback

Max. 4 CH

Max. 8 CH

Search

Time slice / time / event / tag /smart search

Smart Search

Highlighted color to display the camera  record  in  a  certain period of time, different colors refers to different record events

Function

Play, pause, FF, FB, digital zoom, etc.

Decoding Capability

Live View/ Playback

1CH 6MP;

4CH 1080P

Alarm

Type

Manual, sensor, motion, exception, smart events, etc.

Input

Support IPC alarm input

Output

Support IPC alarm output

Triggering

Record, snapshot, buzzer, preset, e-mail, etc.

Network

Interface

RJ 45 100Mbps × 1

Protocol

TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, RTSP, ONVIF, etc.

Incoming Bandwidth

40 Mbps

64 Mbps

Outgoing Bandwidth

40 Mbps

64 Mbps

Client Connection

Max. 10 users access

Plate Detection

Plate Detection (AI by IPC)

Yes

Mobile Device

OS

iOS, Andriod

Storage

HDD Interface

SATA3.0 × 1, max 10T

Backup

Local Backup

U disk, USB mobile HDD

Network Backup

Yes

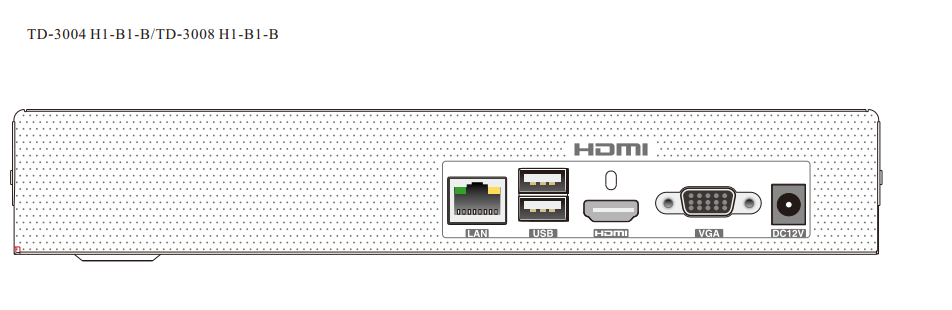

Port

USB

USB 2.0 × 2

Remote Controller

No

Others

Power Supply

DC 12V/1.5A

Consumption

≤ 5W ( without HDD )

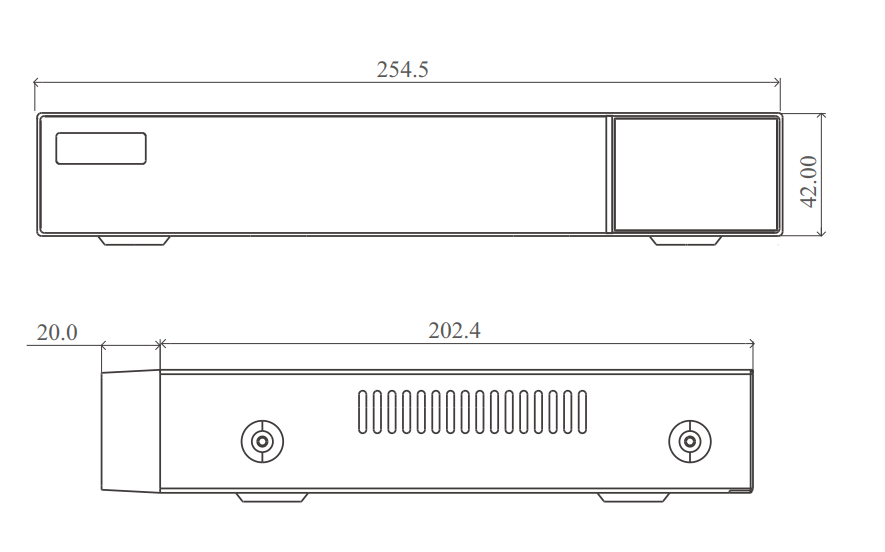

Dimensions (mm)

255 × 222 × 42 ( W × D × H )

Working Environment

-10 ～ 50 ℃，10% ～ 90% humidity

Certificate

CE, FCC

Environmental Protection

Complies with Directive EU RoHS, REACH and WEEE
