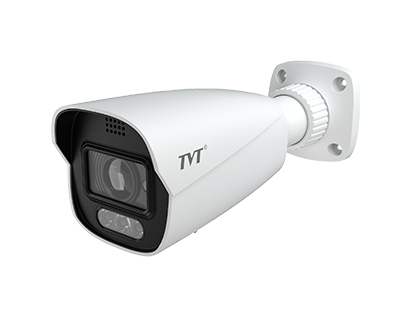

5MP AI Bullet Network Camera

TD-9452A3-PA

5MP AI Bullet Network Camera

TD-9452A3-PA Motorized zoom lens ：2.8~12mm

Description

Features

5MP ( 2592 × 1944) H.265 full real time coding

Max. resolution: 2592 × 1944

ICR auto switch, true day / night

30 ~ 50m IR night view distance; motorized zoom lens

3D DNR, true WDR, HLC, BLC, Defog and ROI coding

1CH audio input; 1CH audio output; 1CH speaker

Built-in micro SD card slot, up to 256GB

DC12V/PoE power supply

IP66 ingress protection

Support three streams

P2P function optional

Support remote monitoring by smart phones & tablet PCs with iOS and Android OS

Intelligent analytics: abnormal video signal detection (scene change, video blur& video color cast detection), line crossing detection (human/vehicle classification), region intrusion/entrance/exiting detection (human/vehicle classification), sound and light warning

Dimension

Model	TD-9452A3-PA
Camera
Image Sensor	1 / 2.7" CMOS
Image Size	2592 × 1944
Electronic Shutter	1 / 30 s ~ 1 / 100000 s
Iris Type	DC Iris
Min. Illumination	0.008 lux@F1.4,AGC ON; 0 lux with IR 0.0045 lux@F1.2,AGC ON; 0 lux with IR
Lens	2.8~12mm@F1.4, motorized
Field of View	Horizontal: 92.7°~29.8°; Vertical: 76.4°~22.6; Diagonal: 105.4°~36.8°
Lens Mount	Ø14
Wide Dynamic Range	120dB
BLC	Yes
HLC	Yes
Defog	Yes
Digital NR	3D DNR
Angle Adjustment	Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°
Video Compression	Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
H.264 Compression Standard	Baseline Profile/Main Profile/High Profile
Resolution	5MP ( 2592 × 1944 ), 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ),3MP ( 2304 × 1296 ),1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ),D1, CIF, 480 × 240
Main Stream	5MP/4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Main Stream	HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps )
Sub Stream	720P/D1/CIF/480x240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Third Stream	D1/CIF/480x240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Bit Rate	64 Kbps ~ 8 Mbps
Bit Rate Type	VBR / CBR
Audio Compression	G711A / U
Image Settings	ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
ROI	Each ROI to be configured separately
Interfaces
Network	RJ 45
Video Output	No
Audio	1CH audio input; 1CH audio output; 1CH built-in speaker
Alarm	1CH alarm input; 1CH alarm output
Storage	Built-in micro SD card slot; up to 256GB
Reset	Yes
Functions
Remote Monitoring	Web browsing, CMS remote control
Online Connection	Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, FTP, PPPoE, DDNS, SMTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS
Interface Protocol	ONVIF
Storage	Network remote storage; micro SD card storage
Smart Alarm	Motion detection, SD card error, SD card full, IP address conflict, Cable connection
General function	Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction
PoE	Yes , IEEE802.3af
IR Distance	30 ~ 50 m
Protection Grade	IP 66
Intelligent Analytics
Video Abnormality	Scene change detection, video blur detection, video color cast detection
