8 CH HD NVR

TD-3308H1-A2

8 CH HD NVR

TD-3308H1-A2 supports 8 CH 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280x1024 / 960P / 720P high definition IP input, which adopts the advanced SOC technique to ensure high definition recording in each channel andrealize outstanding robustness of the system. TD-3308H1-A2 supports 8 CH IPC input , simultaneous 8 CH playback, and 4K high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.

Description

Features

Supports 8 CH 12MP / 8MP / 6MP /5MP / 4MP / 3MP / 1080P / 1280x1024 / 960P / 720P / 960H / D1 / CIF IPC Input

H.265S/H.265+/H.265/H.264

Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse

Multi-type recording: manual / timed / motion / sensor / POS / AI recording

Playback : 8 CH simultaneous playback

Search : time slice, time, event, tag and smart search

Supports face detection and comparison

Supports multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.

Supports license plate recognition

Supports POS information overlay on live view and playback

Pentaplex : preview, record, playback, backup and remote access

DHCP, DDNS, PPPoE network protocol

Compatible with third-party IPCs, such as ONVIF, Hikvision, etc.

Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration

Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device

Multi-user online simultaneously

Authorization management, log view and device status view

4K output, true high resolution display

Supports PTZ preset and auto cruise, up to 255 presets and 8 cruises

Supports NAT function and QRCode scanning by mobile phones

Powerful mobile surveillance by smart phones with iOS and Andriod OS

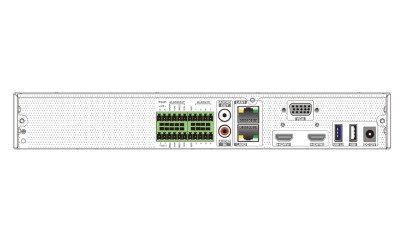

Dimension

Model		TD-3308H1-A2
System	OS	Embedded Linux
Video	Compression	H.265S/H.265+/H.265/H.264
	IP Video Input	8CH IPC input
	Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
	Network Bandwidth	80Mbps/80Mbps (incoming/outgoing)
	Output	HDMI1 : 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768
		HDMI2 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
		VGA ×1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
		VGA and HDMI1 output the same video source
Audio	Network Input	8 CH IPC audio input
	2-way Audio	RCA × 1
	Local Output	RCA × 1
	Compression	G.711(U/A)
Record	Record Stream	Dual stream recording
	Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
	Frame Rate	NTSC: 30fps; PAL: 25fps
Playback	Simultaneous Playback	Max 8 CH
	Search	Time slice / time / event / tag / smart search
	Smart Search	Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
	Function	Play, pause, FF, FB, digital zoom, etc.
Decoding Capability	Live View/ Playback	1CH 12MP/4CH 1080P
Multi-Screen Display Mode	Mode	Dual output mode (default mode): supports HDMI2 output, but doesn’t support AI by device
	Mode	AI mode: HDMI2 output and 12MP video input (live view/playback) are unavailable, but 8MP video input supports
	Dual Output Mode	8CH (HDMI1) +8CH (HDMI2)
	AI Mode	8CH(HDMI1)
Alarm	Mode	Manual, sensor, motion, exception, smart events, etc.
	Input	8 CH local alarm input
	Output	4 CH
	Triggering	Record, snap, preset, e-mail, etc.
Face	Face Detection Performance (AI by IPC)	8 CH
	Face Detection Performance (AI by Device)	2 CH (2MP)
	Face Match Performance	6 CH
	Comparison Capability	18 pictures / second
	Face Picture Database	32 libraries
	Face Picture Database	10000 Face Pictures
	Face Picture Search	Search by picture is supported
	Database Management	Add, modify, delete and search face pictures
	Face Picture Adding	Add face pictures through APP, WEB and external import
	Face Picture Comparison	Supports allow list, block list and stranger match alarm
	Track	Track display on a map
	Statistical Graph of Information	Bar graph
	Statistical Mode of Information	Statistics by day, week, month, quarter as well as customized time period
Video Structure Analysis	Human/Vehicle Classification	Yes
Other Functions	Fisheye	Supports fisheye dewarping via Web Client and mobile APP
Other Functions	Plate Recognition	Yes
Network	Interface	RJ 45 1000 Mbps × 2
	Protocol	TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF
	Client Connection	Max. 10 users access
Mobile Device	OS	iOS, Andriod
Storage	HDD Interface	SATA × 1, max 10T
Backup	Local Backup	U disk, USB mobile HDD
Backup	Network Backup	Yes
External Interface	RS 485	Yes (full-duplex), connect to PTZ or keyboard
	USB	USB 3.0 × 1 ; USB 2.0 × 2
	Remote Controller	Optional
Others	Power Supply	DC12V/2A
	Consumption	≤ 20W ( without HDD )
	Certificate	CE, FCC
	Environmental Protection	Complies with Directive EU RoHS, REACH and WEEE
	Dimensions(mm)	300 × 249 × 45 ( W × D × H )
	Working Environment	-10 ～ 50 ℃，10% ～ 90% humidity
